AMD’s Trinity – the A10-5800K is on our spotlight today. Is it any better than the A8-3850?

AMD A10-5800K Trinity Desktop Processor (APU) Review

A close up of the processor.

AMD A10-5800K Trinity Desktop Processor (APU) Review

The processor was paired with the Gigabyte GA-F2A85X-D3H socket FM2 motherboard.

The Processor Benchmarks

Canon Digital Photo Professional

Converting 16 18 megapixel RAW file (CR2 format) into JPG format.

CPU Time Taken
A10-5800K 165 seconds
A8-3850 250 seconds
X6 1100T (6 core @ 3.3ghz) 157 seconds

Arcsoft Media Converter 7

Converting a 1 minute 47 second video taken at 1080p 25fps from a Canon EOS 550D to H264 1280×720 (720p) video.

CPU Time Taken
A10-5800K 53 seconds
A8-3850 68 seconds
X6 1100T (6 core @ 3.3ghz) 39 seconds

x264 – 10bit to 8bit Video Conversion

The source video is a 720p MKV file that is 90 seconds in duration. x264 settings at the slowest.

CPU Time Taken
A10-5800K @ 3.8ghz 6 min 44 secs
A10-5800K @ 4.2ghz 6 min 9 secs
A10-5800K @ 4.4ghz 5 min 59 secs
A8-3850 8min 3secs
X6 1100T 4min 25secs
Intel Core i5 2500K 6min 15secs

The encoding speed increases on each overclock. 4.2ghz was attainable without voltage boost. 4.4ghz was attained with 0.1 vcore boost, it completed this test but didn’t pass Intel Burn Test. Nevertheless it shows quite some OC potential. The 6 core still holds the lead.

The GPU Benchmarks

I spent some 6 hours or so trying to get Hybrid Crossfire up and running as what I did with the A8-3850 last time but to no avail, so I’m going to go with my “best estimation” of what the Hybrid CFX setup would be like.

I will base my estimation on the benchmark for Lost Planet 2 and Unigine Heaven 2.0 in the A8-3850 review. With that, I think a good way to estimate is to add 50% of the performance of the IGP to the HD6670’s performance.

*UPDATED : Refer to the AMD 6800K article for a good idea on what the A10 5800K is capable of.


Graphic Detail : AAA, 16 AF. No Physx. No DOF. Very High Quality.

CPU / GPU 720p 1080p
A10-5800K 10 5.5
A8-3850 8 4.5
HD 6670 1GB GDDR5 25.5 14.5

Heaven 4.0

4xAA, 16x AF, Tesselation Normal.

CPU / GPU 720p 1080p
A10-5800K 5.5 2.6
A8-3850 6.9 3.9
HD 6670 1GB GDDR5 18.2 10.3

Lost Planet 2

Graphic Detail : Maximum

CPU / GPU 720p 1080p
A10-5800K 5.3 3.9
A8-3850 6.5 4.7
HD 6670 1GB GDDR3 11.4 15.3
HD 6670 1GB GDDR3 14.1 17.2

Hexus ‘s review of the processor shows little to no performance boost, which I would agree with them. Even with the full performance of the IGP added to the HD6670, it won’t be a miracle in performance.

Of course take note that I tested it on 4x AA but seeing how close the A8 and A10 IGP performs, you can refer to the A8-3850 review to estimate the performance.

Thermal Performance

I maxed out the readings on the APU and from what I saw – there’s temperature reading problem for the APU. It’s just exactly as what’s seen at Legit Reviews

When I first ran it on load with x264 encoding, HWmonitor shows the system idles at 50c (which is very hot for idle) and 100c on load (which is terribly hot for load!). Even in BIOS / UEFI, the heatsink fan was spinning like crazy.

Then I loaded Gigabyte’s EasyTune6 to see it reporting some 30 – 35c lesser than the BIOS reading. Is this correct?

AMD A10-5800K Trinity Desktop Processor (APU) Review

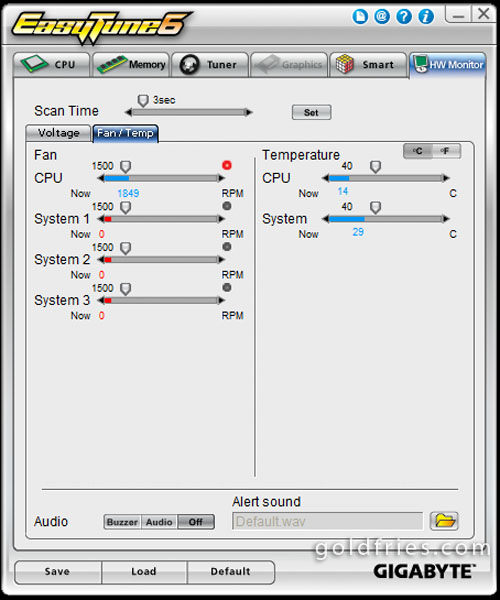

Here’s the EasyTune6 reading when on idle ….. 14c!!!

AMD A10-5800K Trinity Desktop Processor (APU) Review

Typically a processor on idle in a cooling environment (my test environment is 25c) – the processor will idle around 25 – 35c, depending on heatsink type, fan speed and all.

It will not be at 14c because at 14c, that means the processor would be absorbing heat from my lab. Furthermore this setup is just using the stock heatsink that came with the processor, not a liquid nitrogen setup.

My conclusion for this? The temperature should be in between. It’s most certainly not 100c as I have actually touched the heatsink when the reading was 100c and it wasn’t even close. So going on a simple approach.

I took 14c (lowest idle on Easytune), add it to 48c (lowest idle on HW Monitor). It comes to 62, then divide it by 2 and I get 36c, which I think is a reasonable idle temperature. For load temperature, I decided to settle with a halfway point figure as well ((104c + (104c – 34c))/ 2 ) = 87c, which I think is a reasonable temperature reading for a 100w TDP processor.

*Update : apparently the readings are different from APU to APU. LOL. Definitely the readings are there, it just appears on different area of HW Monitor. Just refer to the Gigabyte software, that’s the right one.


I think this is a fun processor and worthy of recommendation. Sure, the temperature reading is a bit problematic but you could get an AMD A10-5800K setup for about RM 700 or so, the processor costs about RM 500 while the cheapest FM2 board is about RM 220.

I think the plus point is that it’s overclockable. Just a quick tweak and it’ll bring you places, look at how it compares to the X6 1100T and the i5-2500K on various tests.
