Cooler Master Hyper TX3 Heatsink Review

Cooler Master Hyper TX3 Heatsink Review

I was looking for a cheap 3rd party heatsink and this was what I decided to buy.

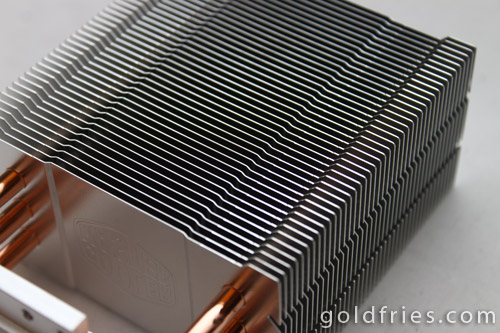

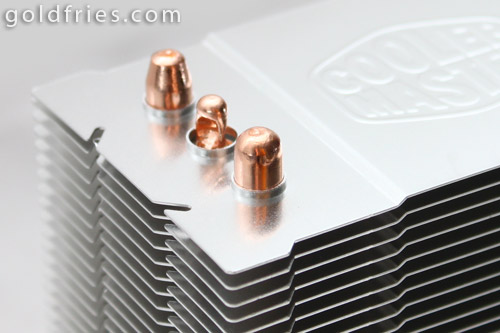

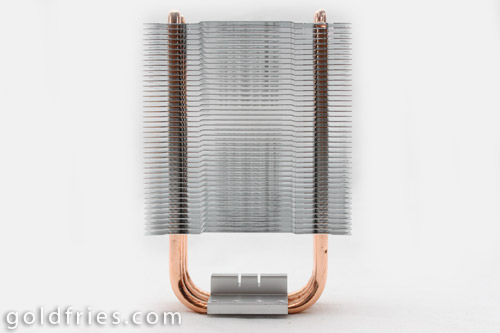

The Heatsink

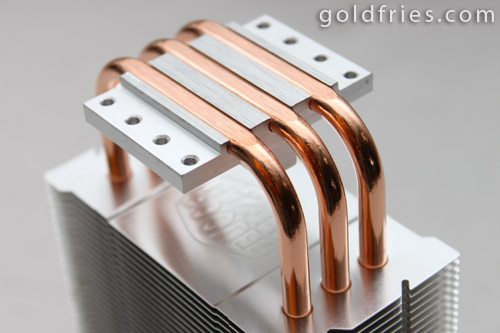

Nowadays all heatsinks look similar. The usual heatpipe + fins + fan.

Cooler Master Hyper TX3 Heatsink Review

Cooler Master Hyper TX3 Heatsink Review

Cooler Master Hyper TX3 Heatsink Review

Cooler Master Hyper TX3 Heatsink Review

Cooler Master Hyper TX3 Heatsink Review

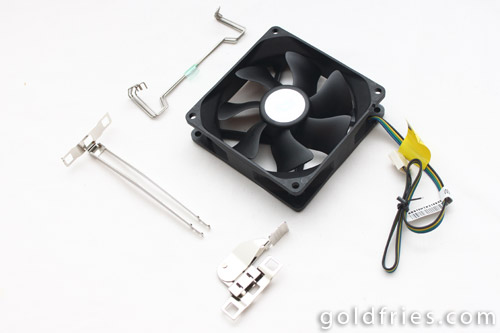

Various accessories – fan, clips and mounts for various socket.

Cooler Master Hyper TX3 Heatsink Review

The product site categorizes it as LGA1156 cooler but in reality it has flexible mountings for Intel Socket LGA 775/1156 and AMD Socket 754/939/940/AM2/AM3, which is also stated on the site. 😀

More details at the official product page.

The Performance

Tests were done when room temperature is about 25°c.

Processor used was an Intel Pentium G6950, tested in both stock speed and overclocked speed.

As always, I also like to test them on FANLESS. 😀 The TX3’s fan was set to maximum speed when it’s in use.

Intel Pentium G6950 – Stock 2.8Ghz

Heatsink Hyper TX3 Hyper TX3 Fanless Stock
Idle 22°C 27°C 27°C
Load 34°C 44°C 43°C

Looks great, even on fanless. Meaning it cools just as the stock cooler, minus the noise.

Intel Pentium G6950 – Overclocked 3.717Ghz

Heatsink Hyper TX3 Hyper TX3 Fanless Stock
Idle 25 °C 32°C 31°C
Load 49°C 71°C 63°C

In overclocked state, looks like fanless isn’t a good idea but it certainly looks like it’ll work great with the fan set to lower RPM to have some airflow.

Conclusion

Great stuff indeed! Low cost, supporting many mounts and works really well.

The mount does require you to do a little work though but that’s due to the flexible nature of the heatsink.

goldfries recommended

goldfries rated this product :

10 Comments

  1. Author

    Yes can go fanless. 🙂

    I like to go fanless so it’s less noisy. Bought it for RM 60 i think. Sorry forgot to state the price in article. hehe.

  2. Just bought and installed…. i’m not 100% satisfied but i guess i cant complain since its extremely cheap. Installation was a NIGHTMARE…. both the main cooler and the fan are a nuisance. Especially the fan, which blocking clip are downright retarded. Anyway – i tried first with fan and then fanless keeping it fanless now) and the result are not extraordinary, maybe i’m using a hotter cpu, dont know. Anyway, with a OCed phenom 2 720 i got with the fan around 35 idle but it was quite noisy. Not annoyingly so, it was a reasonable background noise, but you could definitely tell it was a fan and i was aiming for a very silent pc. So i went fanless and there started the problems: on true idle (pc started but no software in background it reach 45°, but with a browser opened and emule in background quicly climbed to 65° (and i’m using asus cool’nd quiet software to keep it undervolted while in low use). What’s strange is that once i started a serious game, going on full but starting (trough a rheobus) the case fans it went back to 45°. IMHO it means that while it works fanless (after all 65° is not a damaging temp for a cpu) it was definitely NOT designed to work in that way, as the huge drop in temp occured once the case’s fans were started shows. This cooler simply need a fan to keep the nearby air cool. Plus, i’m a bit worried about what will happen once summer starts…. its winter now, with a 21° temp in my room: what will happen when it will jump to 30°? I fear i ‘ll have to buy a silent fan to replace the stock one of cooler master. Still, this is a 15€ cooler so i can still recommend it to peoples interested in cheap, efficient AND silent cooling.

  3. Ok, round two…. once i let it run for 10+ minutes it reached 75°, nor did it gave any sign it was a once-in-a-lifetime accident. Of course it was inacceptable. Thank god together with it i bought a noctua fan, the latest super silent (-and expensive – 19€, more than the cooler itself) fan and i placed it on the topper side of the case, right above the cooler. Well, as i am writing now in exactly the same conditions of before except that fan (which gave NO noise at all… we are talking about the famed after all) and now its swinging between 40 and 45°. IMHO it proves, again, that this cooler is not cut out to work totally fanless – it needs a fan nearby. Not the noisy stock one, to be mounted on the cooler, but a nearby fan is mandatory. Overall i still recommend this cooler as a great, cheap possibility in building a silent pc. Plus, unlike other wannabe-passive cooler like the ninja etc its relatively small and dont even get close to the ram. I would like to try the scythe mini ninja tough, *maybe* that could be better…. but its 75/100% more expensive, tough.

  4. Author

    how was your casing air flow?

    I didn’t face any head issue with the TX-3 on both installation and performance. I prefer 120mm fan but the 90mm just joins the choir of my other 120mm and GTX470 fans. 🙂

    btw I wouldn’t even think of running it fanless (passive cooling) on hotter processors. 😀

  5. Oh, when the case fans are on the air flow is pretty good^^
    If fan noise does not bother you i guess the 90mm fan of the tx3 is ok, its rumour would surely be drown by the 470’s. As for fanless…. well, my cpu (phenom2 720) may not be the hottest around but its not the coldest either. I had an athlon2 before it, tdp on 65W (720 is 95) and i’m pretty sure the TX3 would have kept a much lower temp with it

  6. Author

    Fan noise bothers me a lot, I like everything as silents as possible so I have fan controllers for practically everything. 😀 Unfortunately the TX3’s fan connector doesn’t fit well with my usual 3 pin controllers. 🙁
