Cooler Master B-series ver.2 Power Supplies Now Available in Malaysia

Cooler Master, a leading creator, innovator, and manufacturer of desktop components and peripherals, announces the launch of the B-series ver.2 power supplies here in Malaysia.

The new B-series ver.2 has been revised with a completely new circuit layout and new components which is compliant to the EU regulation. It is also officially listed at the ecoPSU Efficiency Program and has been rated ecoPSU Level 85.

As part of the EU regulation all internally installed power supplies must achieve a minimum level of efficiency in several load conditions and have a power factor of 0.9 at full load. This means that within the EU, focus will be on energy saving and nature friendly designs. The standby power consumption is regulated by the ErP lot6 and cannot exceed more than 0.5W in standby mode. All of Cooler Masters current PSU line-up follow these new regulations.

Click to enlarge.

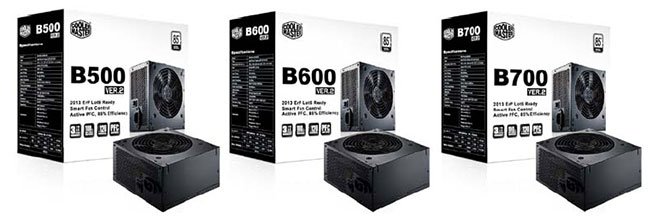

B-series upgraded to ver.2

The biggest difference for the new B-series ver.2 is that it now only has a single rail +12V DC out with a max current of 38A. This now means that all Cooler Master power supplies makes use of a single rail instead of multi rail.

Click to enlarge.

Benefits of Single Rail

Cooler Master opts for single rail usage because of two simple reasons. The first one is that we believe it is better to have more power to one place which really needs the power, then to divide it on several lanes which might not be powerful enough. The second reason is the best one: it is just easier. Some people might not know which contact they need to use on a multi rail PSU but with a single rail you can’t go wrong!

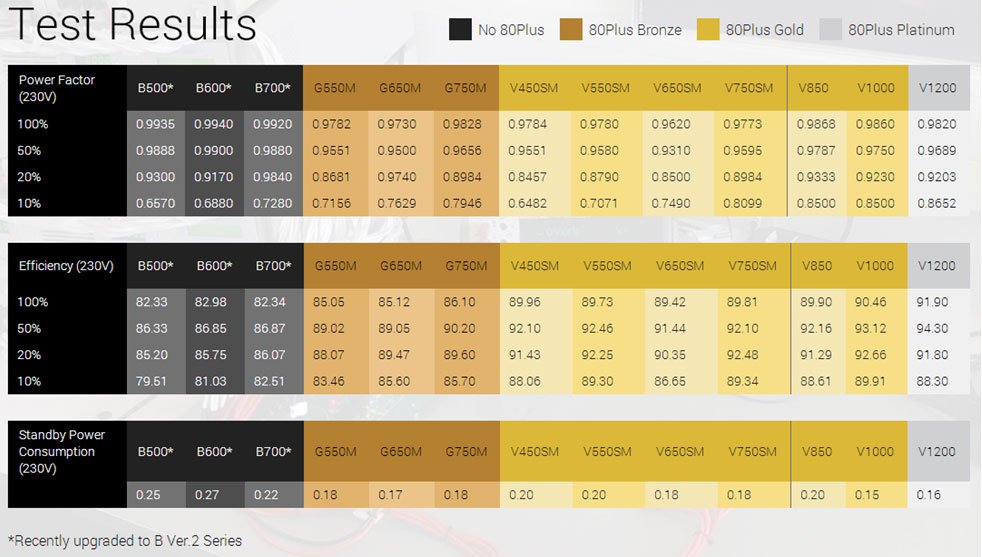

80 PLUS EU 230V & ecoPSU Level 85 Certified

The ecoPSU label not only shows that a power supply is part of the ecoPSU efficiency program, it also provides valuable information about the average efficiency of the tested units. The ecoPSU level number on the label represents the average efficiency of the tested unit at 20/50/100 percent Load. A power supply can only receive the label if the average efficiency complies with the EU regulation requirements that are defined in COMMISSION REGULATION (EU) No 617/2013 of 26 June 2013 of the European Commission.

Click to enlarge.

Availability and Pricing

The following B-series ver.2 power supplies are now available locally.
– B700 ver.2 : RM 359
– B600 ver.2 : RM 305
– B500 ver.2 : RM 239
